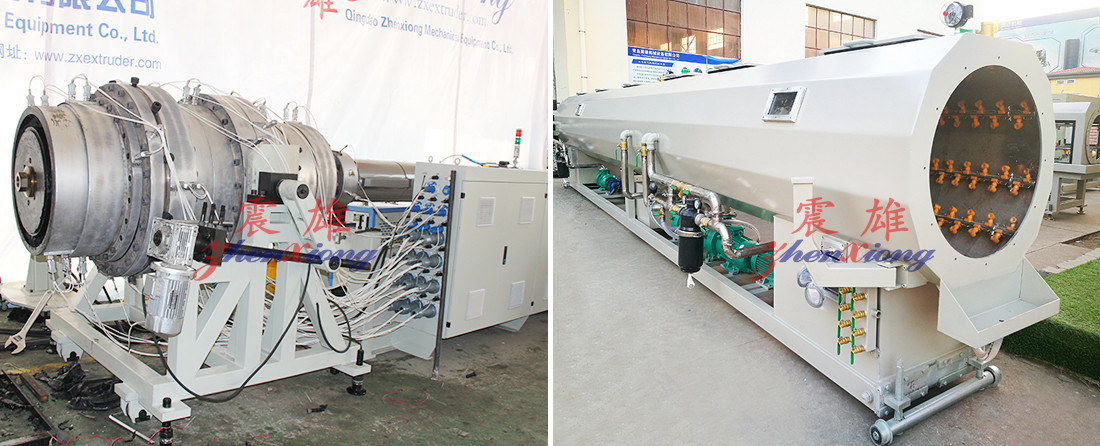

HDPE large-diameter pipe equipment can produce two-layer, three-layer, multi-layer composite pipes or reinforced composite pipes by replacing the pipe mold, increasing the number of single-screw extruders, and updating the production line.
Core advantages:
●HDPE large-diameter pipeline equipment adopts a high-efficiency and energy-saving special single-screw main engine, a variable pitch double-line wave-shaped optimized screw and a strong cold reverse feeding section design, which ensures high efficiency and high production of the main engine while maintaining the stability of material plasticization and melting, reducing energy consumption.
●The spiral diversion die head mold professionally designed for HDPE large-diameter pipeline equipment has uniform diversion and no diversion marks, ensuring uniform wall thickness of the pipe and smooth inner and outer walls.
●HDPE large-diameter pipeline equipment adopts advanced Siemens PLC control system to achieve synchronization and automation of the entire line, intelligent human-machine interface, and easy operation.
●The dual water system designed by HDPE large-diameter pipeline equipment can replace filters without stopping the machine, achieving high-speed shaping cooling.
●Adopting rubber block track traction method, variable frequency speed regulation, wide speed adjustment range, smoother production process, and reducing potential waste.
●The fully automatic chip free cutting mechanism adopts a hydraulic feed system, and the cutting end face is neat and smooth.
●The HDPE large-diameter pipes produced by HDPE large-diameter pipeline equipment have advantages such as smooth inner and outer walls, strong compression resistance, corrosion resistance, aging resistance, and impact resistance.
Pipe production line model classification:
| Pipe Specifications | Extruder | Output kg/h | Remark |
| 160-315 | 90×33 | 350-450 | 160,180,200,225,250,280,315 |
| 315-630 | 120×33 | 850-1000 | 315,355,400,450,500,560,630 |
| 710-1200 | 90×33 120×33 | 1200-1500 | 710,800,900,1000,1200 |
Application scope of HDPE large diameter pipes:
1. Urban Water Infrastructure: Highly suitable for both main and branch pipelines in urban water supply and drainage systems.
2. Urban Renewal Projects: HDPE pipes are extensively applicable to the renovation of pipeline networks in old urban areas.
3. Industrial Material Conveyance: Function as pipelines for transporting industrial raw materials across various sectors, including chemicals, chemical fibers, food, forestry, light industry, and papermaking.
4. Industrial Waste Management: Ideal for industrial wastewater and sewage discharge pipelines.
5. Mining and Sediment Transportation: Widely used for transporting ore, coal ash, and river mud.
6. Agricultural Irrigation: Serve as an excellent solution for agricultural irrigation purposes.
