On the basis of quality, high-speed and high-efficiency extrusion
On the basis of science, low-cost and high-yield output
Core advantages:

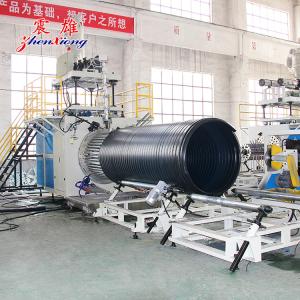

●The large-diameter hollow wall winding pipe production line is equipped with two single screw extruders responsible for square tube extrusion and rubber material extrusion. The special screw design, feeding system, and strong mixing section design ensure high output extrusion and low-temperature plasticization effect of raw materials.
●Adopting a composite machine head, dual machine joint feeding, spiral rotation forming, high-efficiency composite process, to ensure product quality.
●The large-diameter hollow wall winding pipe production line adopts advanced Siemens PLC control system, high-precision temperature control module, stable operation, and high control accuracy.
●The spiral forming machine of the large-diameter hollow wall winding pipe production line adopts an advanced multi-axis transmission structure, with large transmission force, stable operation and long service life.
● The specifications and models of the large-diameter hollow wall winding pipe production line are optional, and are divided into 300-1200mm, 800-1600mm and 1600-3000mm according to the inner diameter size.
● The hollow wall winding pipe produced by the large-diameter hollow wall winding pipe production line has smooth inner and outer walls. The unique pipe wall structure design makes the pipe have many characteristics such as high ring stiffness, light weight, high pressure resistance, good toughness, corrosion resistance, wear resistance, long service life and recyclability.
Application scope:
Widely used in municipal renovation projects, construction, industrial and agricultural drainage, agricultural water-saving irrigation, sewage treatment projects and other fields. Low assembly cost, easy operation, easy connection and economy will make this pipe have a wider application prospect and market potential.
| Model | SJ-90 | Production Capacity | 200Kg/h |
| Screw Diameter | 90mm | Overall Dimensions | 30000 * 4000 * 5000mm |
| Maxi. Extrusion Diameter | 90mm | Motor Power | 55kw |
| Pipe Diameter Range | 300-1200mm | Weight | 3 - 5 tons |
