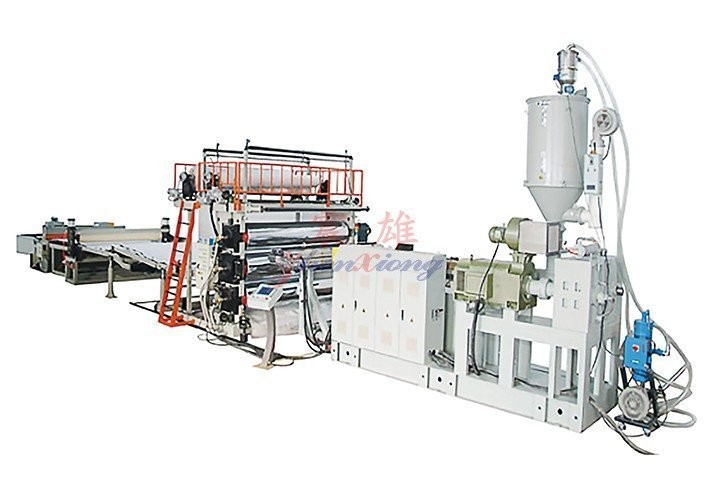

The PE waterproof sheet production line adopts a hanger type mold, and the mold lip is equipped with an oil temperature control system to ensure uniform and consistent discharge.
Core advantage:
●The screw of the PE waterproof sheet production line adopts a BM type belt mixing structure, fully ensuring the plasticization of the material.
●The three roll roller of the PE waterproof sheet production line adopts a specially designed eight channel, four in and four out structure, ensuring uniform and consistent surface temperature of the roller, thereby avoiding warping and deformation caused by different temperatures in the product production process.
●The roller of the PE waterproof sheet production line is controlled by a hydraulic cylinder, ensuring that there is no fluctuation caused by mechanical adjustment of the gap in the product.
●PLC touch screen control for PE waterproof sheet production line.
●The automation level of the PE waterproof sheet production line is high.
●The operation of the PE waterproof sheet production line is simple.
●PE waterproof sheet making machine products are stable.
●The PE waterproof sheet extrusion line has high production efficiency.
●Customization Service Offered: Our equipment is tailored to meet each customer’s unique requirements. We take into full account your specific production needs, along with the layout and dimensions of your existing production site. This ensures that the final product not only functions optimally but also integrates perfectly into your workspace, enhancing overall productivity and operational efficiency.

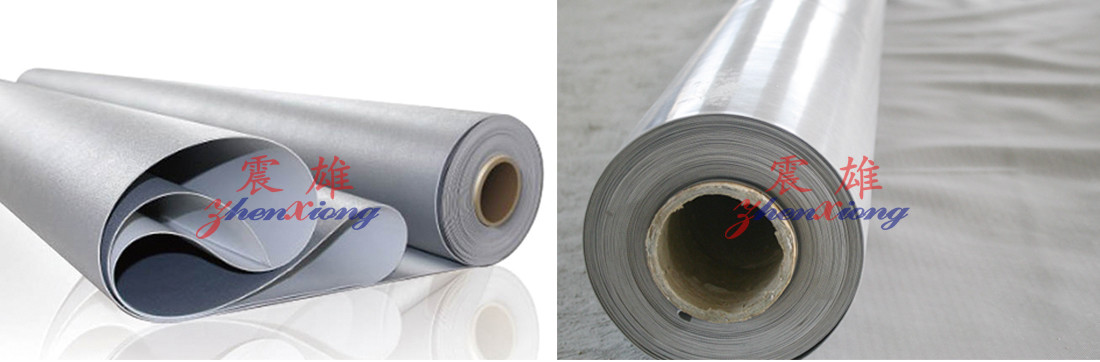

PE waterproof sheet production line - Product application scope:
1. Tunnels, air raid shelters, water retaining dams, and artificial lakes.
2. Wastewater treatment plants, landfill plants, power plants, and large oil depots.
3. Expressway foundation, railway, airport runway.
4. Building foundation and garage foundation.
5. Buildings, roofs of large venues, etc.
| Production Speed | 0.3 - 3 m / min | Max. Board Width | 5000mm |
| Control System | PLC | Extrusion Capacity | 850 - 1000 kg / h |
| Cooling Method | Water Cooling | Main Motor Power | 250 kw |
| Voltage | 380V 50Hz | Color | Customizable |
